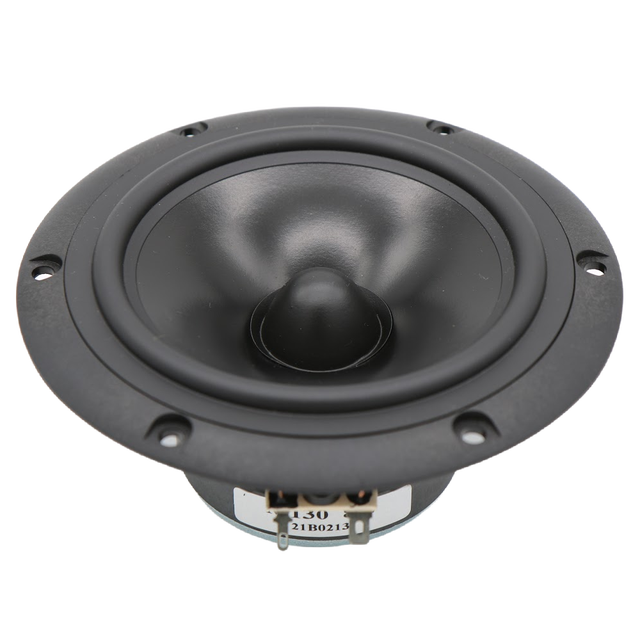

M130 Woofer
$28.95
The M-130 has a curvilinear cone allowing a smooth roll off into higher frequencies, giving it a more extended range as well.
The M-130 has a curvilinear cone allowing a smooth roll off into the higher frequencies and giving it a more extended range as well. In this latest version the midrange is smoother than ever and bass response is stronger too. The M-130 can be used as a woofer or as a mid, and is ideal for two-way applications. Its light weight mass and strong motor structure offer good speed with great detail and dynamics. In a .40 cubic foot ported enclosure it will play to a -3db down of 55Hz.
- The M-130 has a vented pole piece
- 5.25" cone
- Plus, outer venting
- Bumped back plate
- Polymer chassis
- Light-weight, treated paper composite cone with new curvilinear shape
Mounting information:
- 4.875" diameter through hole (3/8" or larger round-over required on back side)
- Screw mounts 5.625" apart
- Outer frame: 6.3125"
- Mounting Depth: 2.375"
Additional information
| Weight | 6 lbs |
|---|---|
| Dimensions | 9 × 6 × 6 in |
Thiele/Small parameters
FS 50 Hz
RE 5.6 ohms
Qms 2.48
Qts .39
Qes .45
Xmax 3.3mm
L (1k) .29 mH
L (10k) .16 mH
Vas 16.3 Liters
Ms 7.72 grams
Cms 1.285 mm/newt
Bl 5.37 Tesla-M
SPL 89.9 db
Area 95.05 sq cm
Qms 2.48
Qts .39
Qes .45
Xmax 3.3mm
L (1k) .29 mH
L (10k) .16 mH
Vas 16.3 Liters
Ms 7.72 grams
Cms 1.285 mm/newt
Bl 5.37 Tesla-M
SPL 89.9 db
Area 95.05 sq cm
