M165NQ/16 Woofer

$139.00

These are one of a kind drivers designed specifically to be used as mid-bass drivers in open baffle applications. The M165NQ/16 is the 16 ohm version that is designed to be used in paralleled pairs.

Category:

Description

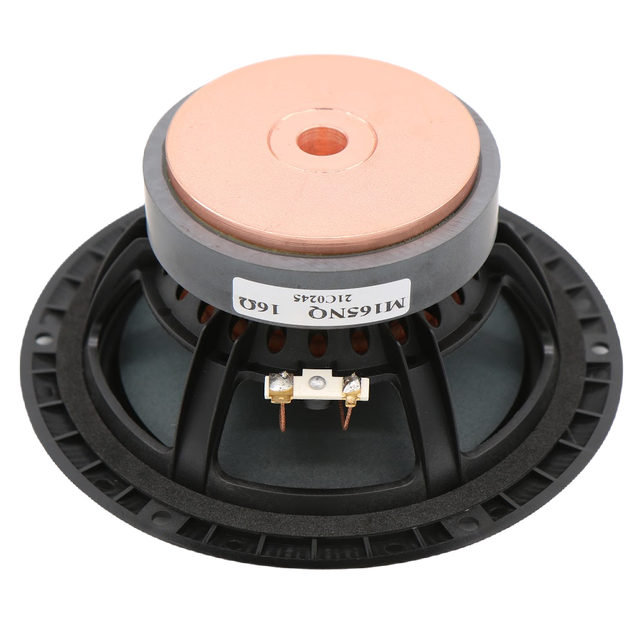

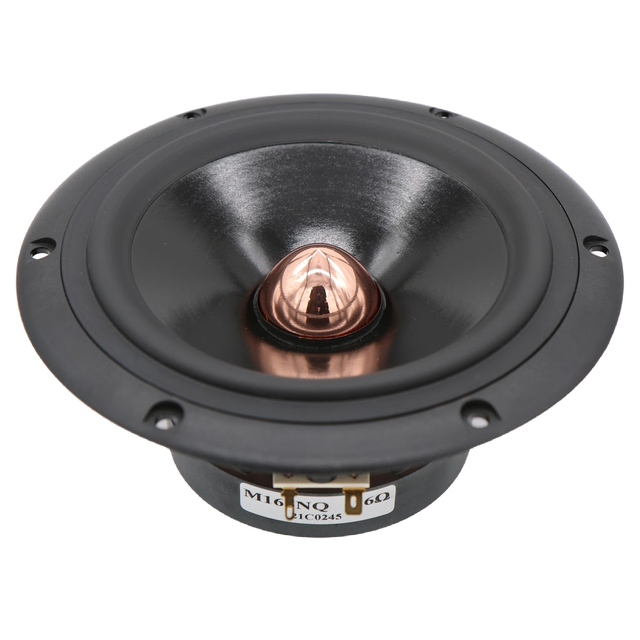

The M165NQ/16 is the 16 ohm version that is designed to be used in paralleled pairs. These are one of a kind drivers designed specifically to be used as mid-bass drivers in open baffle applications. No other drivers are currently available that have been designed just for this application. These new woofers have a push pull motor design that uses a Neodymium magnet on the pole piece and a ceramic magnet on the top plate. They have Copper shorting rings and an Aluminum phase plug. The phase plug, back plate, and top plate are all Copper anodized. The voice coil is a large 44mm. The cones are paper, and play smoothly into the upper ranges with no break up or ringing. And they use our popular non-resonant polymer frames. There is no better frame. The diameter of the driver frame is 7.25″ and mounting depth is 2.9375″. See a .pdf file of the frequency response here.

Mounting Dimensions:

  • 5.75″ diameter through hole (3/8″ or larger round-over on back side required)
  • Mounting screw distance: 6.7″ from one side to the other.
  • Outer frame: 7.25″ diameter
  • Mounting depth: 3″

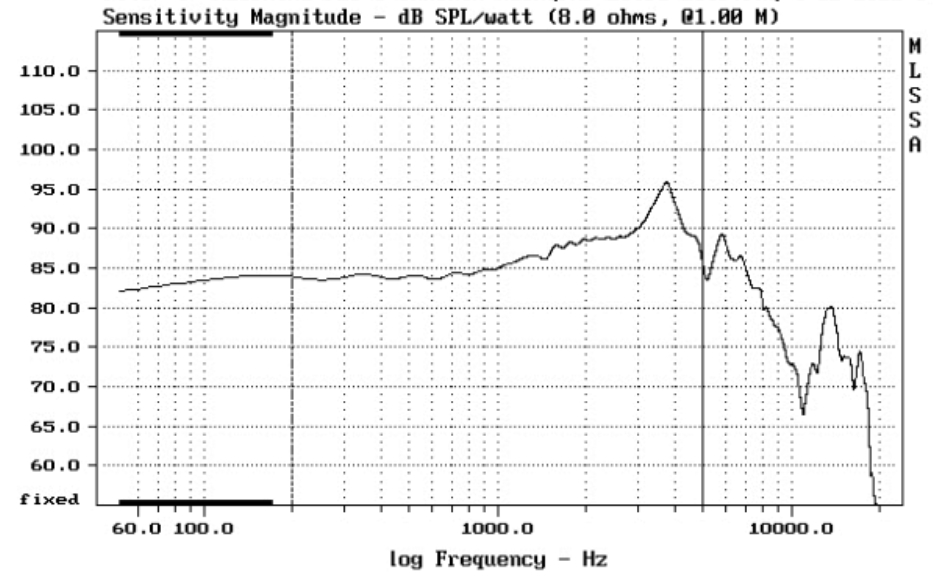

Frequency Response: (Infinite baffle)

Additional information

Weight 6 lbs
Dimensions 9 × 9 × 6 in

Thiele/Small parameters

FS 57 Hz
RE 12.7 ohms
Qms 8.96
Qts .67
Qes .72
Xmax 5 mm each way
L (1k) .83 mH
L (10k) .17 mH
Vas 16.48 Liters
Mms 12.36 grams
Cms .624 mm/newt
Bl 8.86 Tesla-M
SPL 88.6 db
Area 137.07 sq cm
